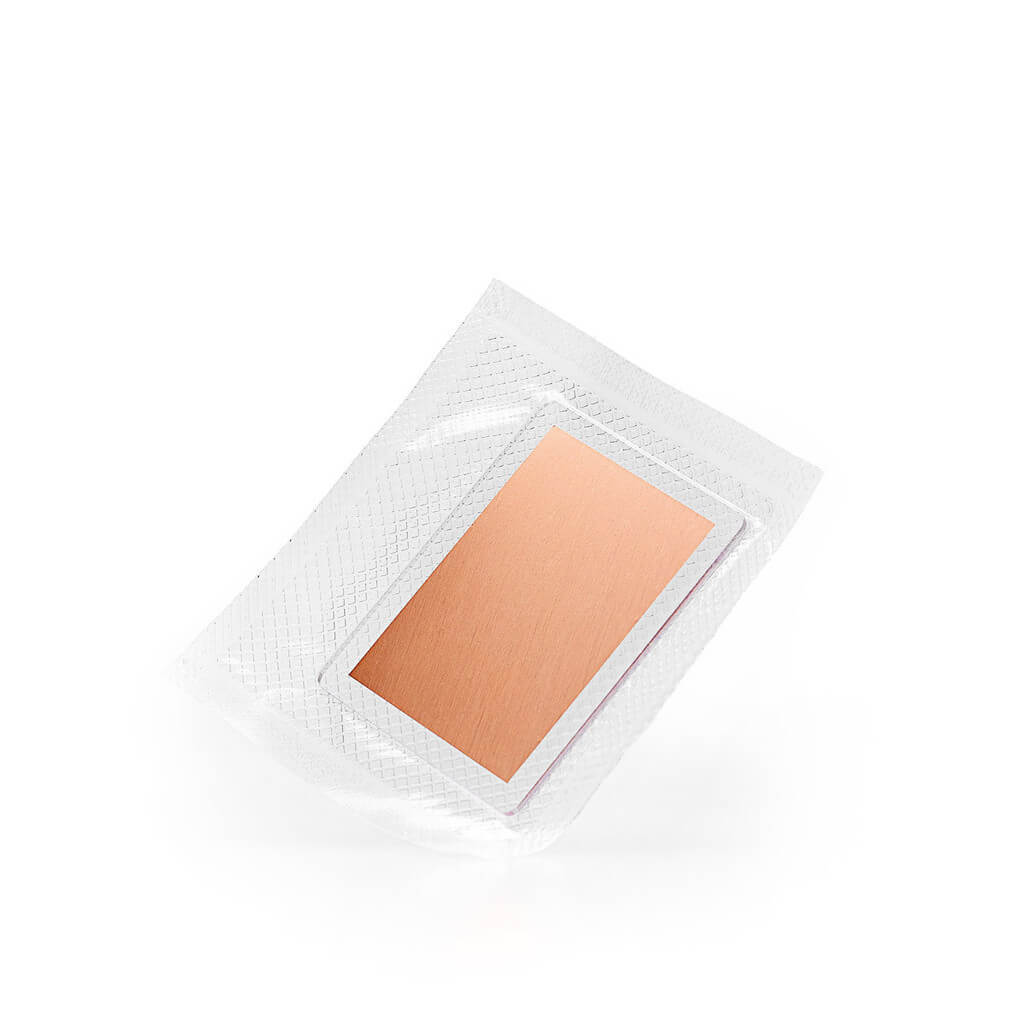

Monolayer Graphene Film on Cu Foil – 60mm X 40mm

$299.00

Monolayer Graphene Film on Cu Foil – 60mm X 40mm are the subject of intense scientific research due to their unique electronic properties and have potential applications in microelectronics applications micro- and nano-electromechanical systems (MEMS and NEMS), in field effect transistors (FETs), and in  chemical and biological sensors among others.

Description

Monolayer Graphene Film on Cu Foil – 60mm X 40mm

This product consist on a single-layer graphene grown on copper foil substrate that is coated with single atomic layer of graphene which is deposited via chemical vapor deposition (CVD).. Our Monolayer Graphene Film on Cu Foil – 60mm X 40mm is a high quality product with a great homogeneity. Thanks to its excellent properties is one of the best options for R&D Departments and Universities.

Graphene Film

Transparency: > 97%

Coverage: > 95%

Thickness (theoretical): 0.345 nm

FET Electron Mobility on Al2O3: 2000 cm2/Vs

FET Electron Mobility on SiO2/Si: 4000 cm2/Vs

Sheet Resistance: 580±50 Ohms/sq (1cm x 1cm)

Grain size: Up to 10 μm

Substrate Cu Foil

Thickness: 18 μm

Pretreated for easier bottom layer removal

Applications

Graphene research, Electronics, Aerospace industry, MEMS and NEMS, Microactuators, Conductive coatings
