Description
If you’re formulating a graphene–polymer composite, developing an electrochemical sensor, or engineering an ion-exchange membrane, you need graphene oxide with a reliable carbon-to-oxygen ratio batch after batch. Inconsistent GO is why so many promising lab results never scale.
Our spray-dried graphene oxide powder is manufactured to a tight specification window and QC’d on every lot. You get reproducible performance — so your composite mechanicals, membrane selectivity, or sensor response tracks your process variables, not the material.
Specifications
| Property | Specification | Unit | Method |
|---|---|---|---|
| Appearance | Dark Brown Powder | — | Visual |
| Tap Density | 0.50 ± 0.1 | g/cm³ | Tap density meter |
| Moisture | ≤ 15.0 | % | Oven |
| Carbon Content | 45 ± 10 | % | Element Analyzer |
| Oxygen Content | 45 ± 10 | % | Element Analyzer |
| Ash | ≤ 2.5 | % | ASTM C561 |
| D50 (particle size) | ≤ 30.0 | µm | Particle size analyzer |
Structural Characterization

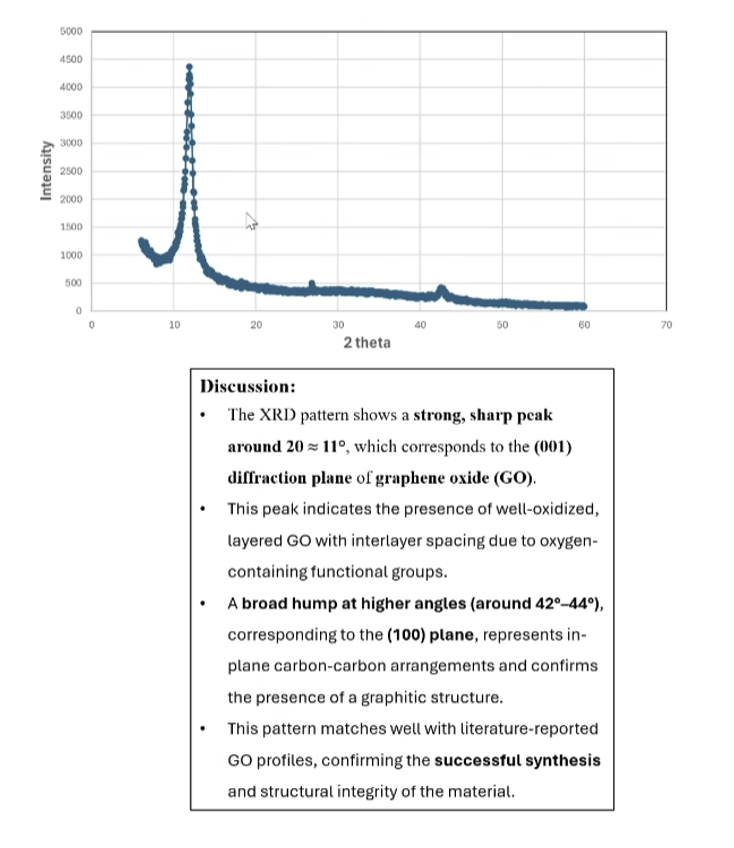

XRD confirms successful oxidation: strong sharp peak at 2θ ≈ 11° corresponds to the (001) diffraction plane of graphene oxide, indicating well-oxidized, layered GO with interlayer spacing due to oxygen-containing functional groups. A broad hump at 42–44° (100 plane) confirms graphitic in-plane ordering.

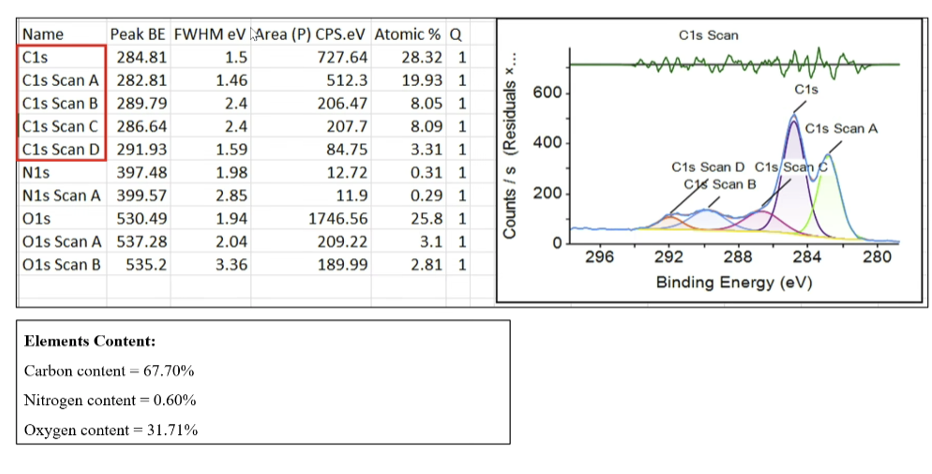

XPS: Carbon 67.70%, Oxygen 31.71%, Nitrogen 0.60%. C1s peaks at 284.8 eV (sp² C), 286.6 eV (C–O), 289.8 eV (C=O), 291.9 eV (π–π* shake-up).
Applications
- Polymer composites — epoxy, PVA, and PLA reinforcement for mechanical and barrier properties
- Ion-exchange and separation membranes — water treatment, dye rejection, gas separation
- Electrochemical sensors and biosensors — electrode functionalization
- Precursor for rGO — chemical, thermal, or electrochemical reduction
- Conductive and resistive inks — post-reduction or hybrid formulations
- Catalysis research — as a functionalizable 2D support
How to Order
- Standard research quantities ship from our catalog — typical lead time 2–5 business days from our Townshend, Vermont facility
- Bulk orders, custom specifications, or volume pricing: request a quote
- Every order includes a Technical Data Sheet (TDS) and Safety Data Sheet (SDS)
- Published-specs guarantee — if the material doesn’t meet the spec, we replace it or refund you
Want to go deeper on the science? See our graphene oxide category for related materials, and our carbon allotrope research guides for context on sp² carbon materials.
