Monolayer Graphene Film-PET-10mm X 10mm


Monolayer Graphene Films-PET-15mm X 15mm are the subject of intense scientific research due to their unique electronic properties and have potential applications in microelectronics applications micro- and nano-electromechanical systems (MEMS and NEMS), in field effect transistors (FETs), and in  chemical and biological sensors among others. Prices are per substrate unless otherwise specified as in a 4 pack.

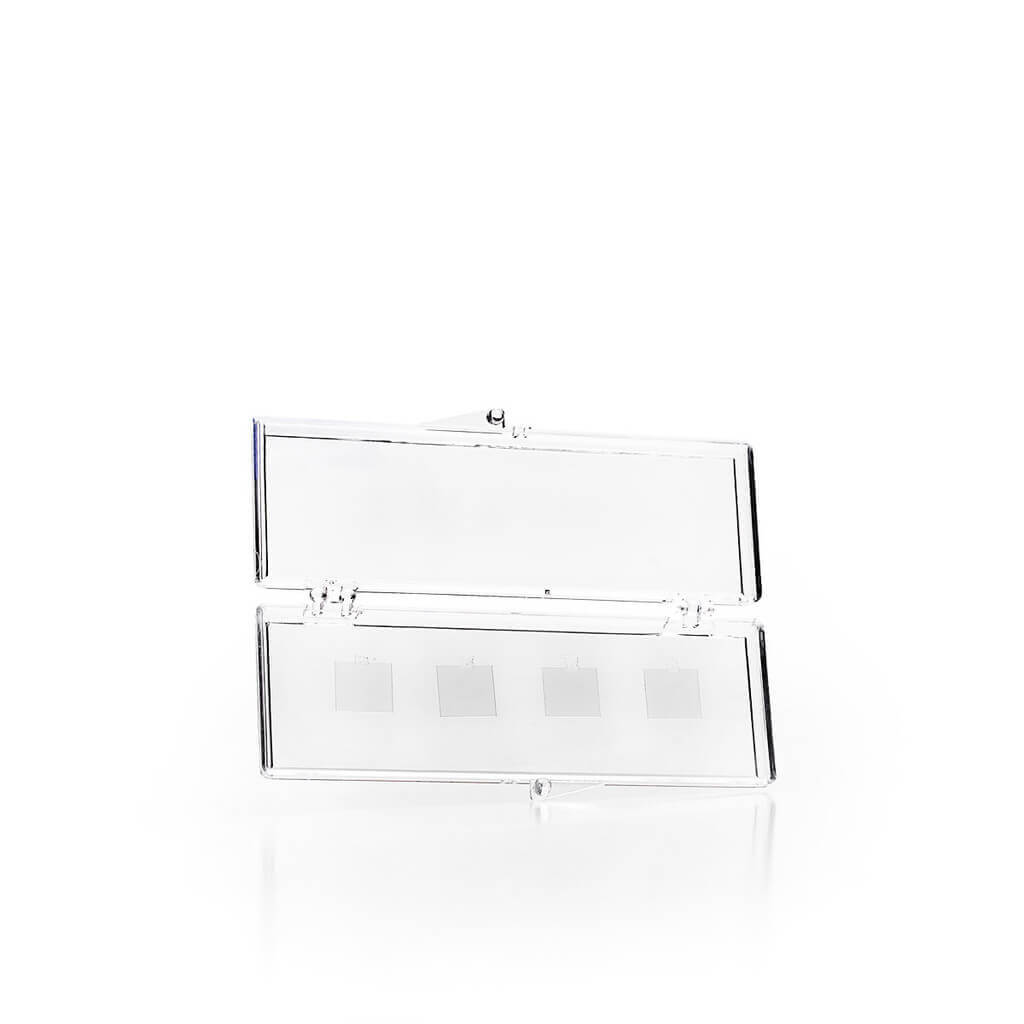

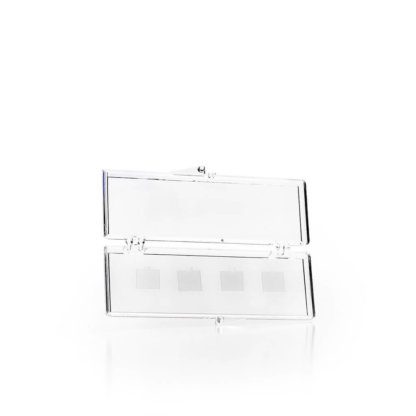

Monolayer Graphene Film-PET-10mm x 10mm – 4 Pack

Our Monolayer Graphene Film-PET- 10mm X 10mm is grown on a 50 micron-thick copper foil that is coated with single atomic layer of graphene which is deposited via chemical vapor deposition (CVD). For products on PET substrates, it is transferred to the polyethylene terephthalate polymer (PET) substrate using a wet transfer process. A Monolayer Graphene Film-PET-10mm X 10mm is flexible allowing for its use in flexible electronics, a growing field. Our Monolayer graphene films 4 pack has the right mix of small size and cost effectiveness to kick start your R&D projects.

Graphene Film

Transparency: > 97%

Coverage: > 95%

Thickness (theoretical): 0.345 nm

FET Electron Mobility on Al2O3: 2000 cm2/Vs

FET Electron Mobility on SiO2/Si: 4000 cm2/Vs

Sheet Resistance: 580±50 Ohms/sq (1cm x 1cm)

Grain size: Up to 10 μm

PET Substrate

Thickness: 175 µm
